GC126 Personal Alcohol Tester With LCD Display

• Hot-wire Senor
• Detection range:0.00-0.20%BAC(0.00-1.00mg/L)
• Accuracy:±10%at 0.05%BAC(±10%at 0.25mg/L
• Warm-up time:＜8 Sec
• Display:3 Digtiay LCD
• Power:3VDC(2××AAA batteries)
• Conditions:0℃--45℃≤95%RH(No Condensation)
• Dimensions:104×36×16mm 50g including Battery

  Gross Weight(kg):	7
  Net Weight(kg):	6
  QTY/CTN:	100
  carton size:	460*330*390mm

GC128 Personal Alcohol Tester With LCD Display

• Hot-wire Senor
• Detection range:0.00-0.20%BAC(0.00-1.00mg/L)
• Accuracy:±10%at 0.05%BAC(±10%at 0.25mg/L)
• Warm-up time:＜8 Sec
• Display:3 Digtiay LCD
• Power:3VDC(2××AAA batteries)
• Conditions:0℃--45℃≤95%RH(No Condensation)
• Dimensions:90×30×16mm 50g including Battery (GC128)

  Gross Weight(kg):	7
  Net Weight(kg):	6
  QTY/CTN:	100
  CARTON SIZE:	45X39X32CM

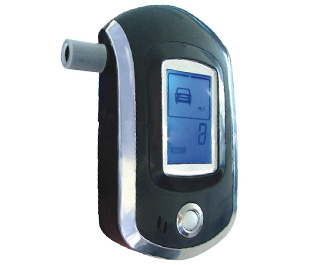

GC6100

• Advanced Hot-wire alcohol sensor
• Quick response and resume
• SMD assembling, stable performance
• Smart MCU control
• Direct testing process LCD indication
• Digital LCD display with light blue backup
• Portable and fashion design
• Audio warning beyond pre-set limit
• Sensor Fault Self checking
• Battery saved design, low voltage indication
• Unit size: 103×65×27mm
• Sensor fault self checking
• LCD display with light blue background
• Technical Date:

  1. Sensor type: NM Hot-wire alcohol sensor
  2. Detection Range:
  0.00~1.00 mg/L(0.00~0.20% BAC; 0.00~2.00 g/L; 0.00~2.00‰ BAC)
  3. Alarming Level: 0.24mg/L(0.05%BAC, 0.50g/L, 0.50‰BAC)
  4. Response Time: Within 5 seconds Warm-up Time: Within 20 seconds
  5. Working Voltage: DC4.5V (3 x AAA) Batteries
  6. Working Environment: Temperature -10~50 ℃
  7. Display: 3 digits LCD display with light blue backup
  8. Dimension: 103x65x27 mm
  9. Battery expectancy time: ≥200 times

• Advanced flat surfaced alcohol sensor
• Quick response and resume
• SMD assembling, stable performance
• MCU control
• Direct testing process LCD indication,BAC 0.000%,0.00 %0,mg/l
• One key operating
• Digital LCD display with light blue backup
• Portable and fashion design
• Audio warning beyond pre-set limit
• Sensor Fault Self checking
• Battery saved design, low voltage indication
• Main Techniques:

  1. Sensor: advanced flat surfaced alcohol sensor
  2. Warm-up time: within 10 seconds
  3. Respond time: within 5 seconds
  4. Operating temperature range: 5-40℃
  5. Detection range: 0.000-0.199% BAC / 0.00-1.99‰ BAC / 0.00-0.99 mg/l
  6. Digital display results (% BAC / ‰ BAC / mg/l)
  7. Quick response and resume
  8. Auto power-off
  9. Use mouthpiece
  10. Sensor fault self checking
  11. Blue-colored backlight
  12. Low voltage indicator
  13. Power input: 3V (3 x "AAA" alkaline battery, not included)
  14. Unit size: 112x61x29 mm

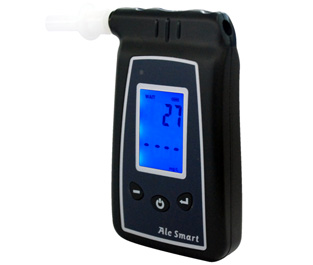

GC8020

• Advanced 16 bit low power consumption MCU
• Electrochemical sensor, good reliability and accuracy
• LCD indication
• Simple button operation
• Low pressure and testing rejection function
• Measurement unit and alarming level adjustable function
• Testing record review function
• Passive testing available
• Short warm-up time, fast response and resume
• Adopt anti-return mouthpiece for health and safety
• Power saved design
